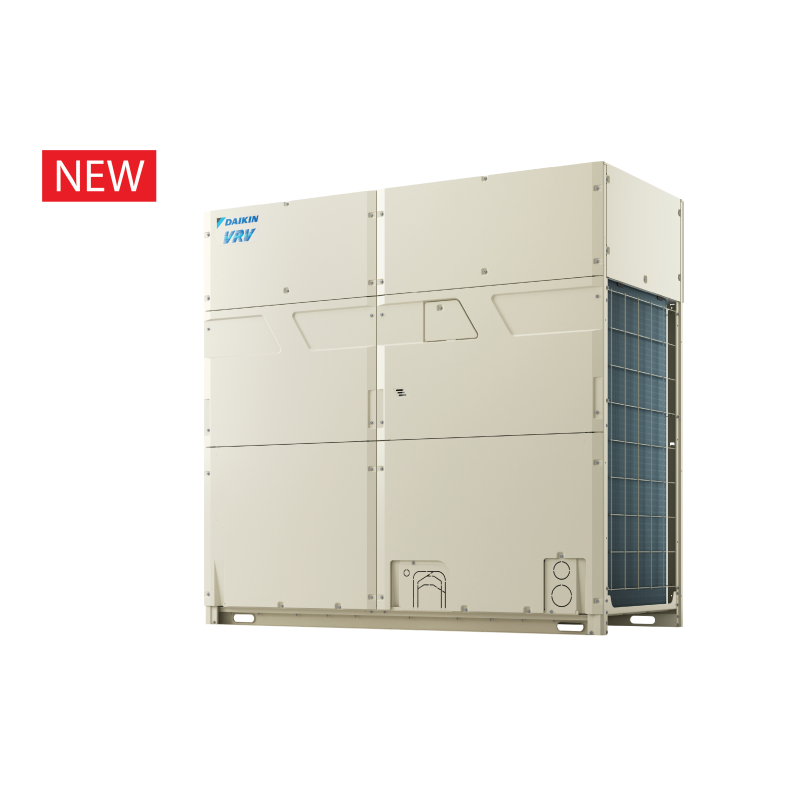

RXQ-BYM
 |
Installation space and cost are reduced by large–capacity casing for max. 26 HP. Maximum capacity has been increased up to 78 HP. |
|
Further improvement of energy saving by high effi ciency compressor and VRT Smart II control. |
|
Sealed electrical component box (IP55) blocks the ingress of debris or water, that leads to unexpected failures. |
|

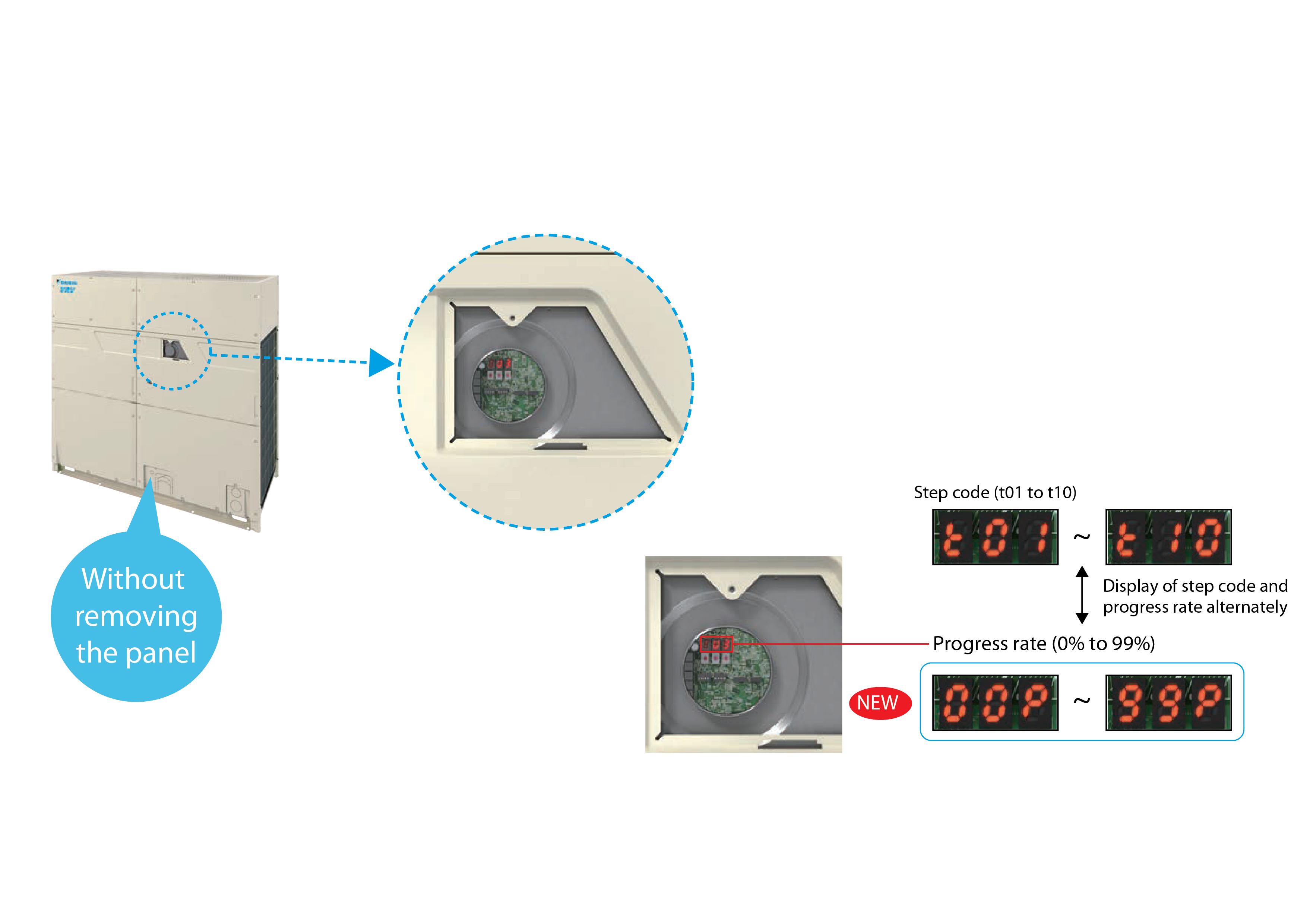

Easy maintainance electrical-component service window. |
|

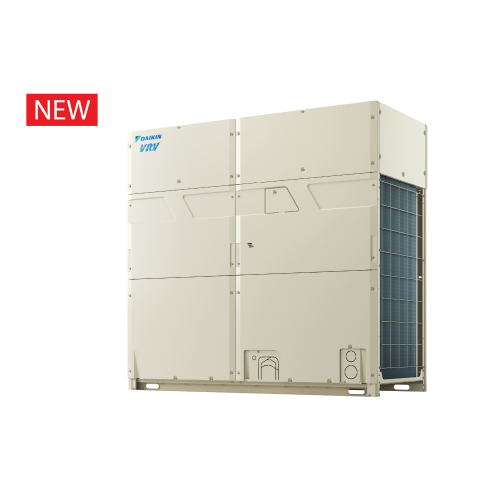

The New VRV 6A series has achieved significant energy savings with improved technology. In a design that is more compact and lightweight, the operating performance has been improved in all directions by introducing unique ideas, technologies and a wide variety of functions to strengthen design flexibility, easy installation and reliability. |
|
VRV 6A series provides higher benefits to various users related to air conditioning systems, for example, building owners, consultants, installers and building managers.

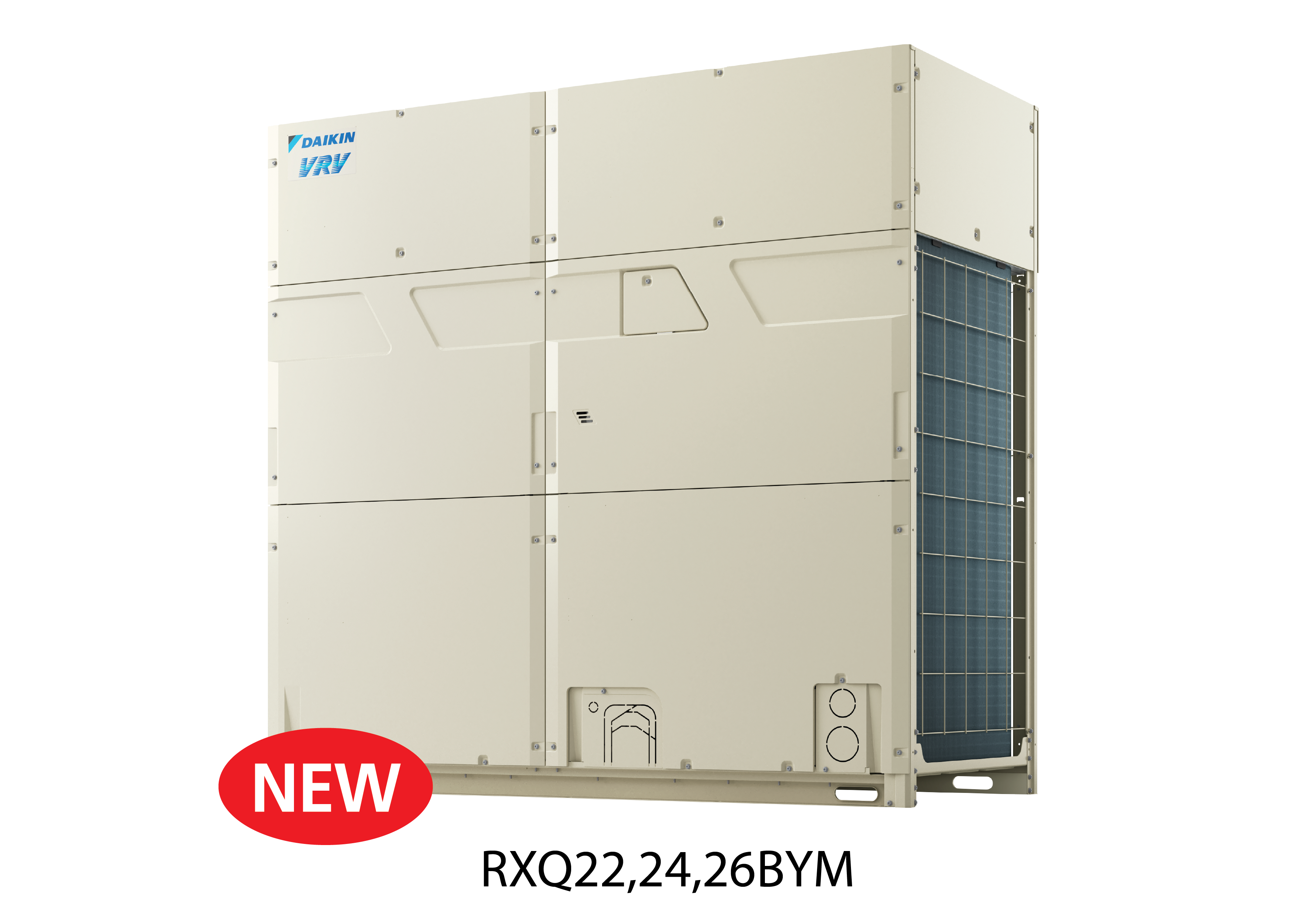

New Casing
Offers advanced design and new structure with excellent workability.
In addition to the conventional combination of two casings, a new large single unit for 22, 24, 26 HP has been added,expanding the range of multiple outdoor units up to 78 HP.

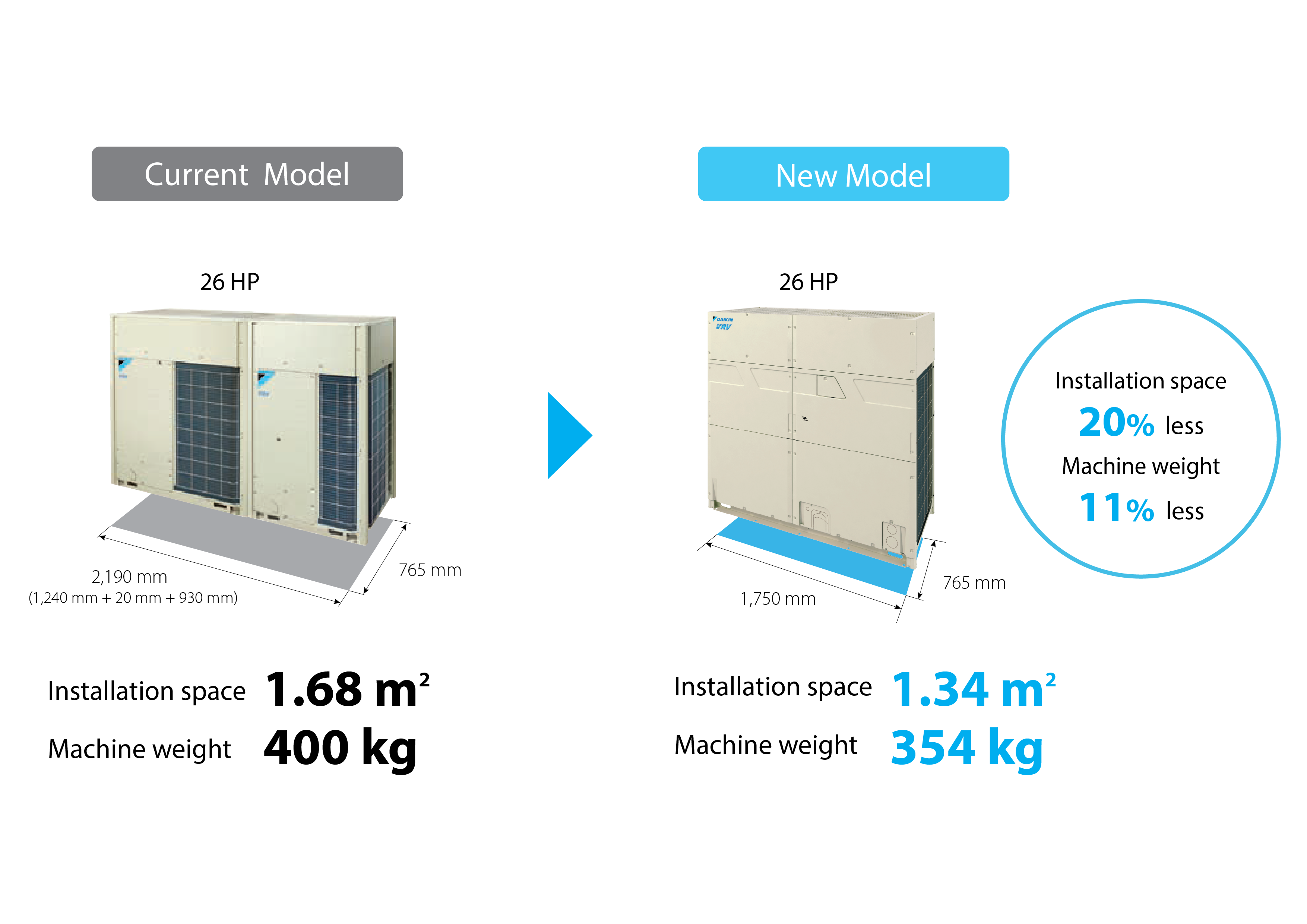

Space Saving
The new large single unit casing reduces installation cost and space.

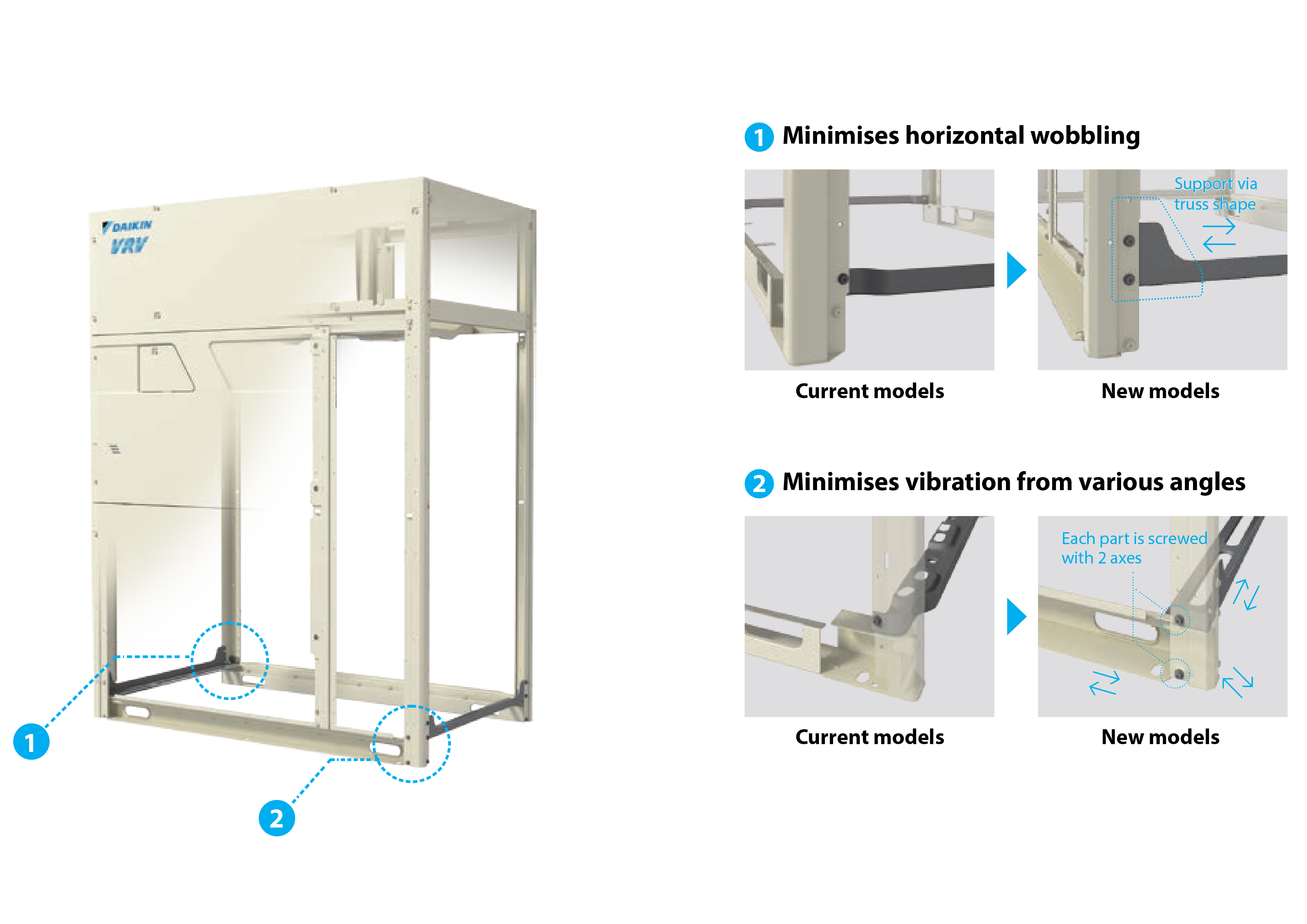

New Reinforced Design
The frame structure has been strengthened to improve resistance to earthquakes and wind while protecting against falling damage.

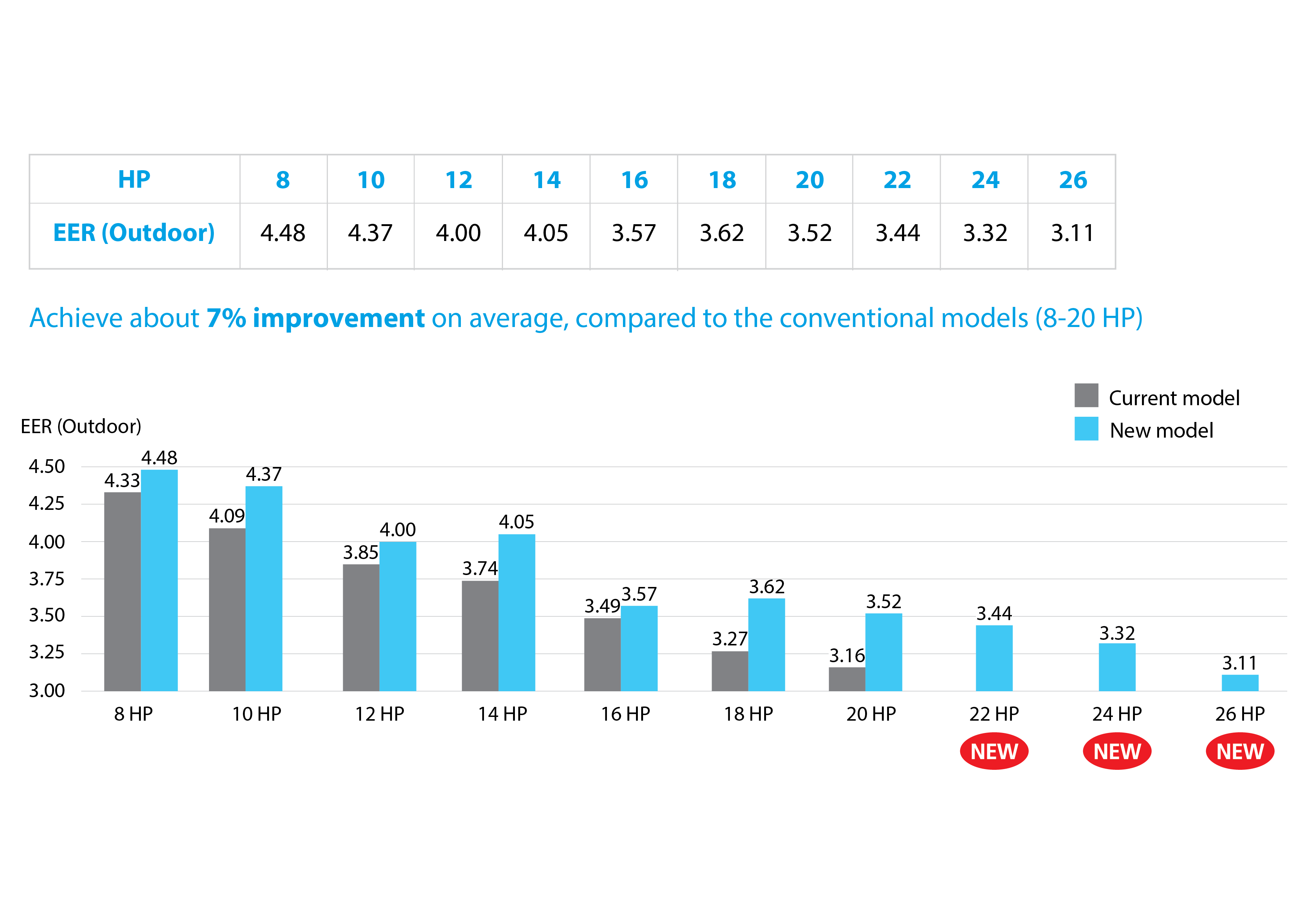

Improves Energy Efficiency Ratio (EER)
New VRV 6A series improves energy e fficiency during actual operation (low load), equipped with a new compressor and VRT Smart II control.

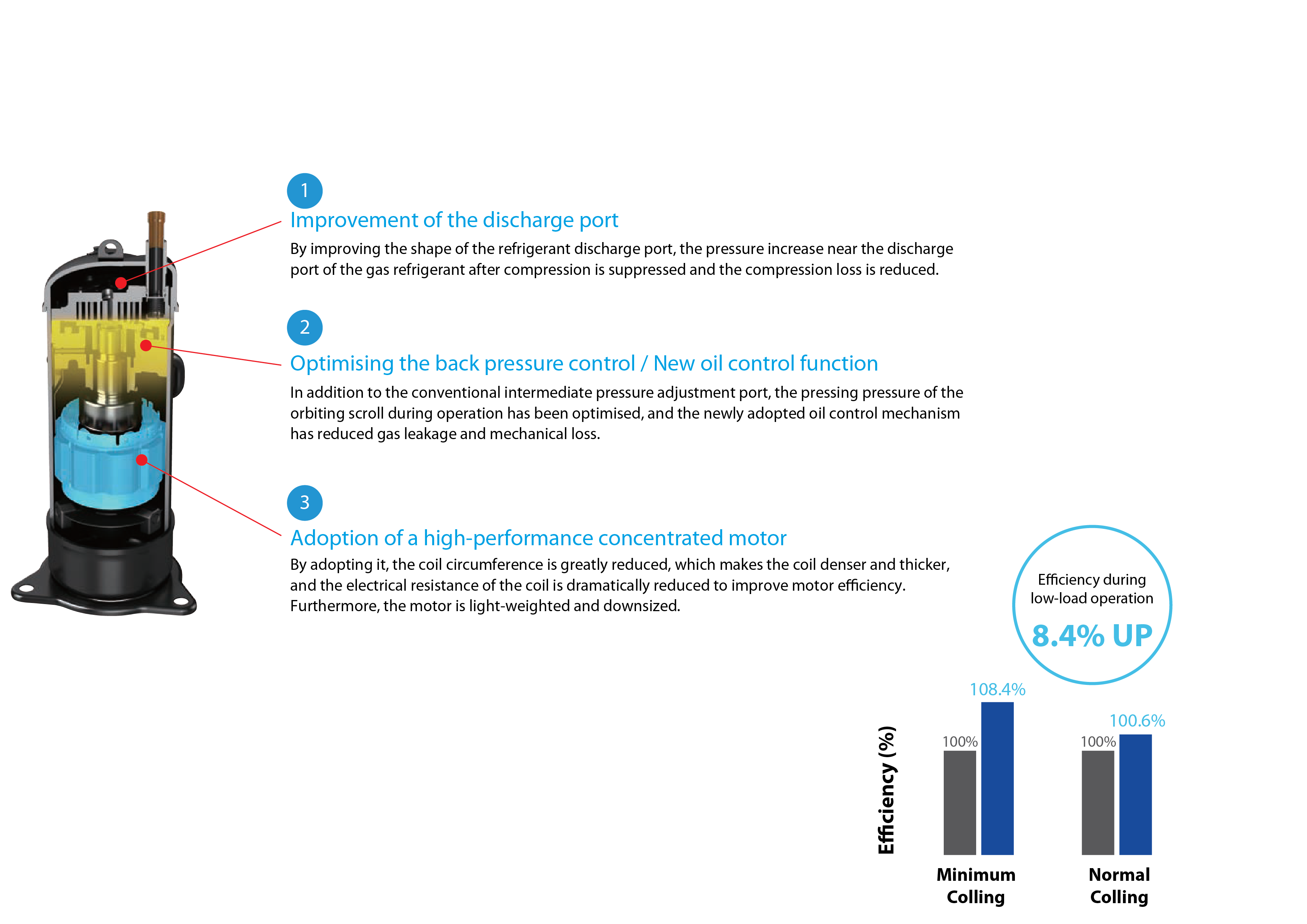

High Efficiency Compressor
New technologies increase seasonal effi ciency and enable a compact design.

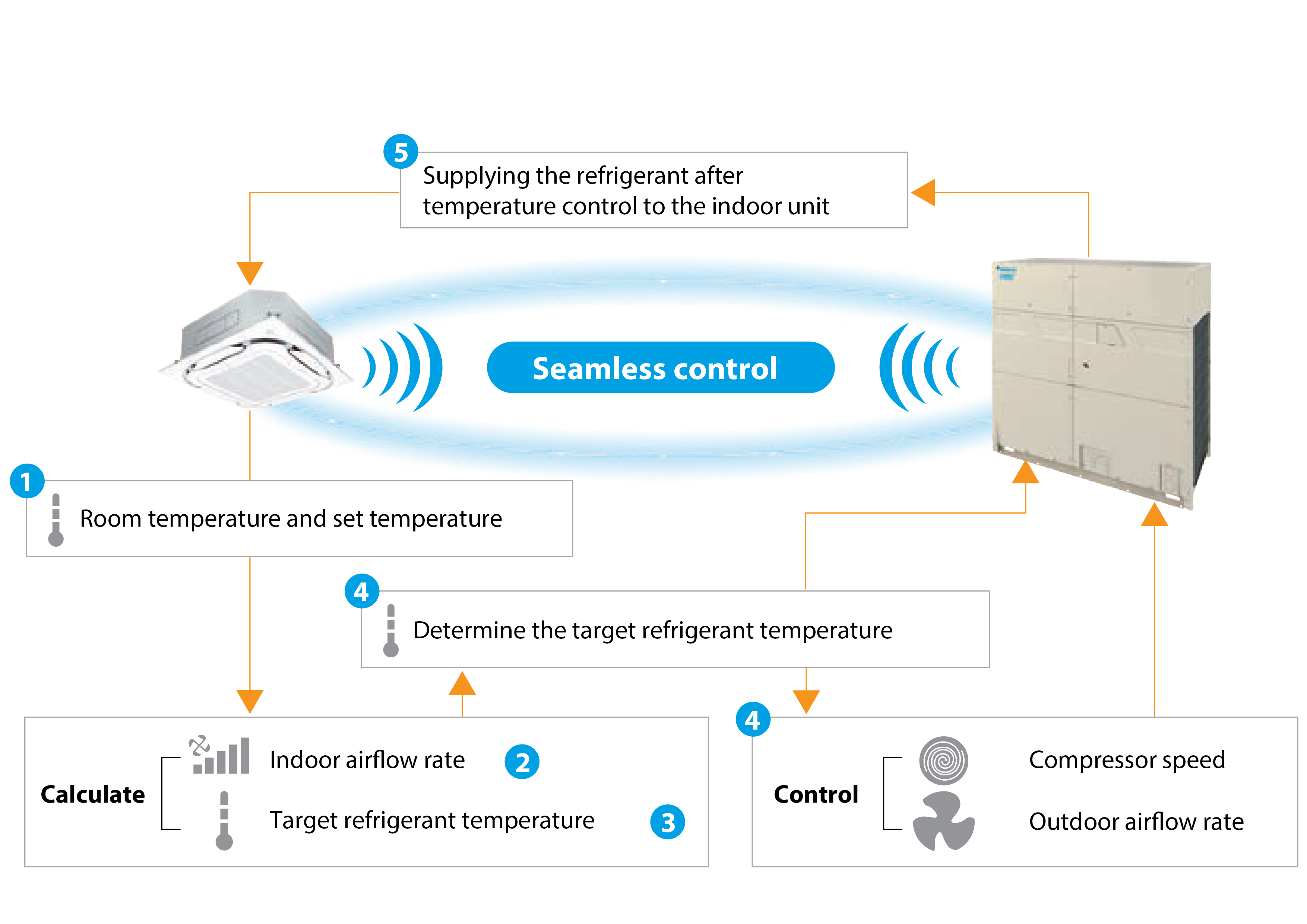

VRT Smart II control
Optimal supply exactly meets the required capacity of indoor units.

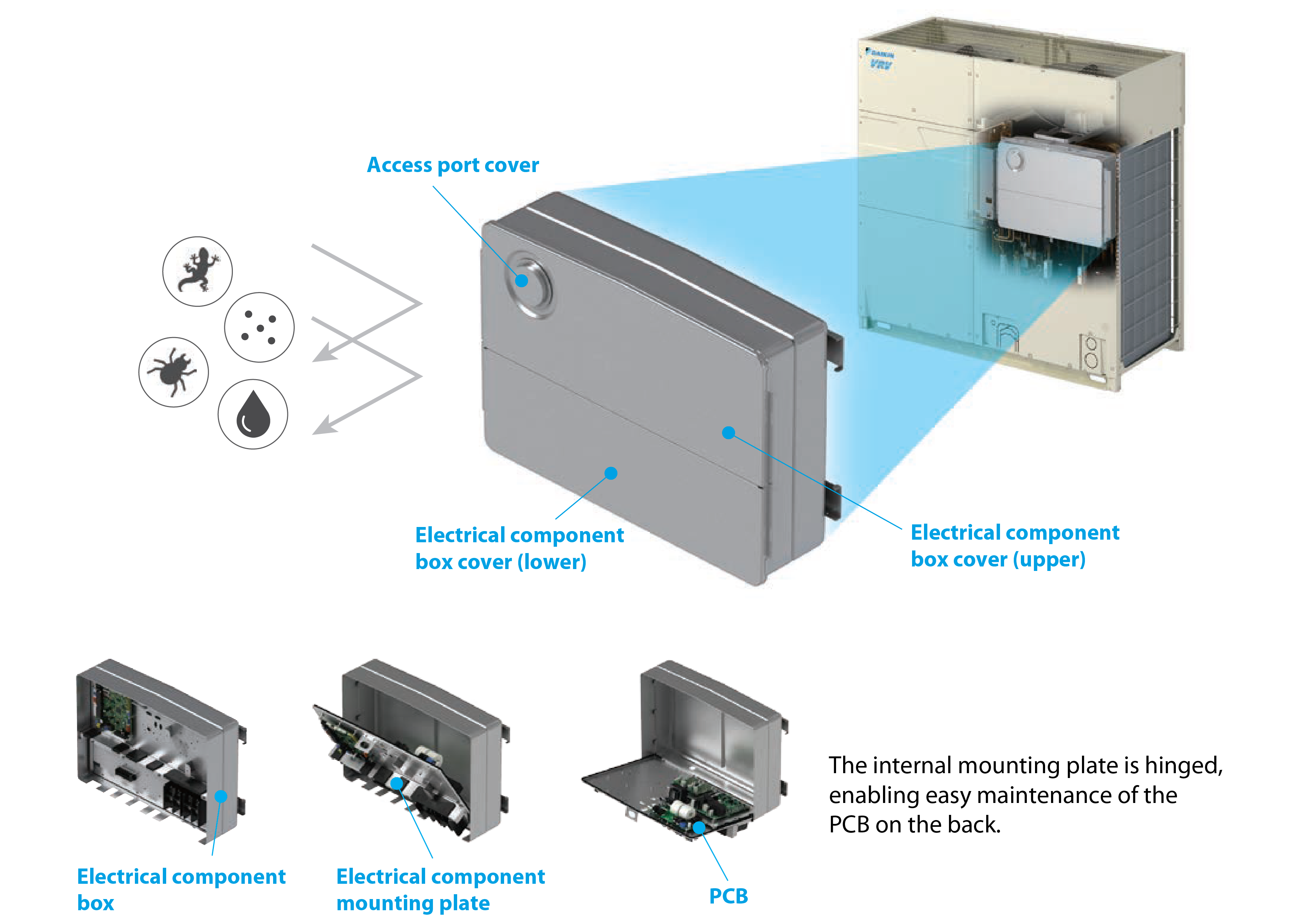

IP55 sealed component box protects electrical component from a cause of failure, that is the ingress of debris (lizards, bugs, sand, water).

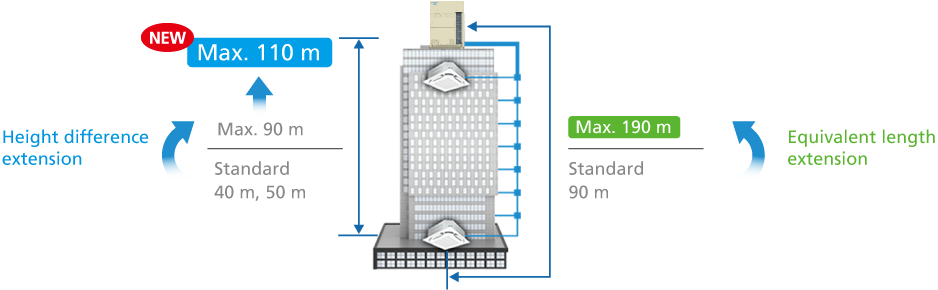

Design flexibility is further improved by simultaneous extension of height difference, improved from 90 m to 110 m, and equivalent length (up to 190 m).

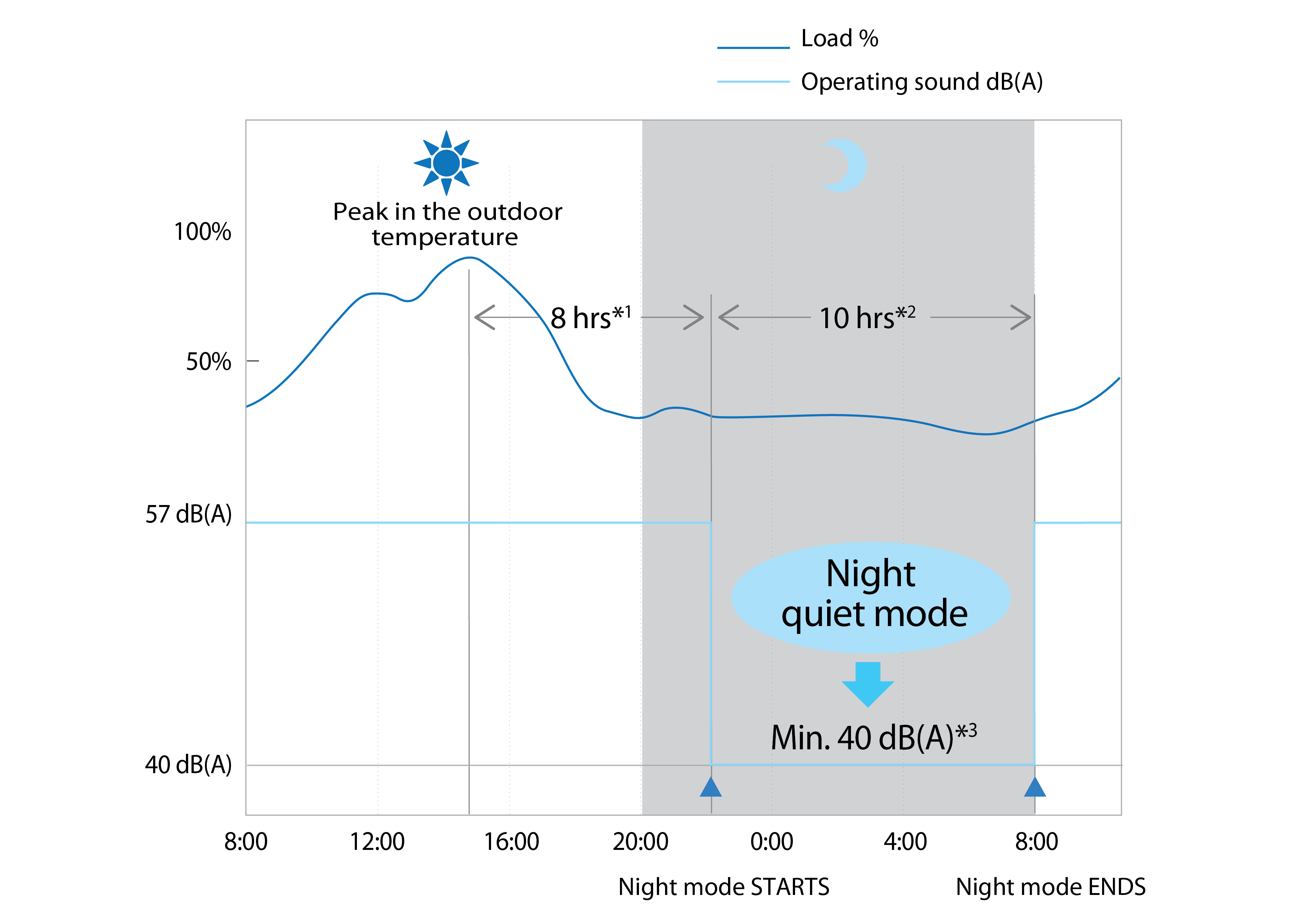

Nighttime Quiet Operation Function
The nighttime quiet operation function automatically suppresses the nighttime operating sound by reducing operation capacity to maintain the quiet environment of the neighborhood. Three selectable modes are available depending on the required level.

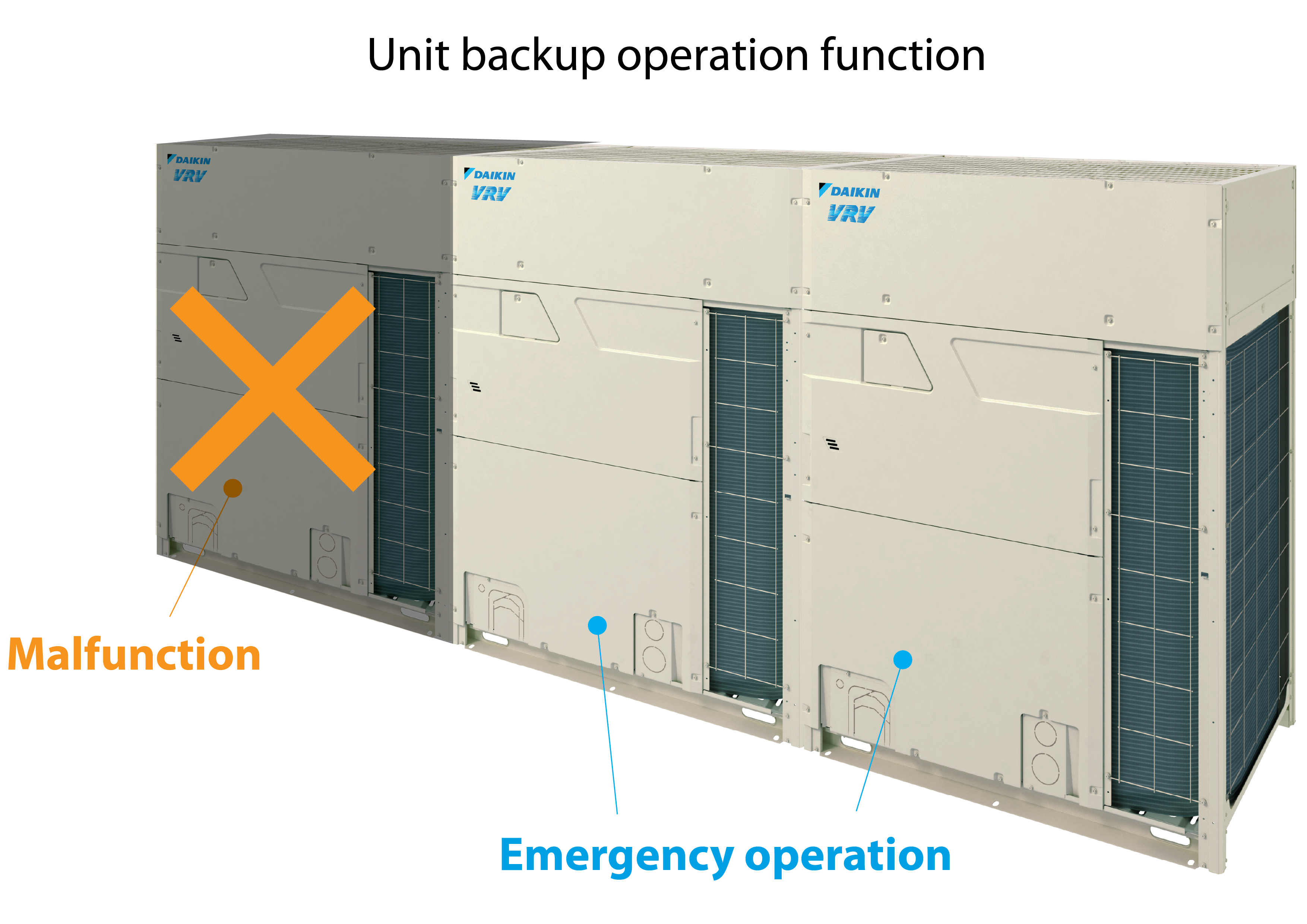

If malfunction occurs in an outdoor unit, the backup operation is supported. (Only for multiple outdoor units)
