FTV-CV19
 |
Turbo Mode: enable the desired temperature to be achieved faster, especially in larger space. |
 |
Quiet Mode: Outdoor and indoor units noise level are kept to a minimum operation. |
 |
Units restarts automatically in 64 different recovery timing patterns (within 180 seconds to 244 seconds.) |
 |
Low Voltage Compressor: strengthen to withstand low voltage conditions. |
Fast Cooling with Turbo Mode
Indoor fan motor to run at maximum speed for 20 minutes. Enable the desired temperature to be achieved faster, especially in larger space.
Comfort Sleep with Sleep Mode
Prevent exclessive cooling for a pleasant and affortlessly personalised sleeping environtment. Set temperature will increase 2° in 2 hours according to regular sleeping temperature patterns.
Calm Environment with Low Noise Operation
Outdoor and indoor units noise level are kept to a minimum for a gentle and unobstructive operation.
Auto Random Restart with Last-State-Memory
In the event of a sudden power failure during operation:
1. Units restarts automatically in 64 different recovery timing patterns (within 180 seconds to 244 seconds.)
2. The air conditioners in the same building will resume randomly instead of all units resuming at the same time, to prevent power surge after a blockout.
3. Will operate based on the previous setting (operating mode, temperature setting and fan

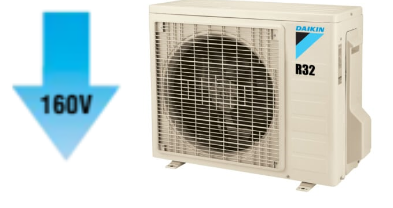

Low Voltage Compressor Able to Operate Down to 160V
- Strengthened to withstand low voltage conditions.
- Enable to continue to operate during low voltage conditions down to 160V.
 |
 |
|
Model |
Indoor Unit |
|
FTV25CV1 |
FTV35CV1 |
FTV50CV1 |
FTV60CV1 |
|
Outdoor Unit |
|
RV25CV19 |
RV35CV19 |
RV50CV19 |
RV60CV19 |
|
|
Power Supply |
V/Ph/Hz |
1 phase, 220-240V, 50Hz (Power from Indoor) |
||||
|
Cooling capacity |
Rated |
Btu/h |
9,000 |
12,000 |
18,000 |
22,500 |
|
kW |
2.64 |
3.52 |
5.28 |
6.59 |
||
|
Running current |
Rated |
A |
3.63 |
5.08 |
7.38 |
9.52 |
|
Power consumption |
W |
780 |
1,110 |
1,660 |
2,130 |
|
|
CSPF |
Wh/Wh |
3.38 |
3.20 |
3.18 |
3.09 |
|
